Sending Domain Email Deliverability Setup for Swift Digital Suite

Setting up a Sending Domain is essential to protect your brand and maximise inbox placement.

By authenticating your From domain (e.g., email.yourdomain.com) with DNS records like DKIM, SPF and DMARC, mailbox providers can verify your emails are legitimate—reducing spoofing and improving deliverability.

📋 Prerequisites

1. Swift Digital Suite administrator access
   You are an administrator in the Swift Digital Suite platform (Administration → Account Settings).
2. Access to your DNS provider for the sending domain
   You can log in to the DNS host for the domain (e.g., Cloudflare, Route 53, GoDaddy) to add/update the required CNAME/TXT records for DKIM/SPF/DMARC/CRP.Sending domain verification
   You can verify ownership of the sending domain using either DNS verification (TXT record) or email verification.

⚠️ Important considerations

DKIM (DomainKeys Identified Mail)
Publish Swift Digital’s DKIM CNAMEs for each selector and allow DNS to propagate.

SPF (Sender Policy Framework)

• Include Swift Digital in your SPF TXT.
• Keep within 10 DNS lookups with a single SPF record.
• Use a dedicated subdomain if needed.
• Ensure alignment with the visible From domain.

DMARC (Domain-based Message Authentication, Reporting & Conformance)

• Publish a DMARC TXT at _dmarc.yourdomain and start with p=none to monitor.
• Set rua/ruf mailboxes and enforce alignment (adkim/aspf).
• Move to quarantine/reject once reports look good.
• Watch third-party senders for alignment.

CRP (Custom Return Path / Bounce Domain)

Set up a dedicated return‑path subdomain (e.g., rp.yourdomain) and add the required CNAME/TXT records to route bounces via Swift Digital Suite. This improves alignment and reputation, don’t reuse this subdomain for websites or other services.

Wait for DNS propagation
Allow 24–48 hours for DNS propagation.

⚙️ Step by Step: Setting up Sending Domain Email Deliverability

1. Log in to your Swift Digital Suite Account as an administrator

2. Click on the Administration module

3. Select Account Settings in the menu bar

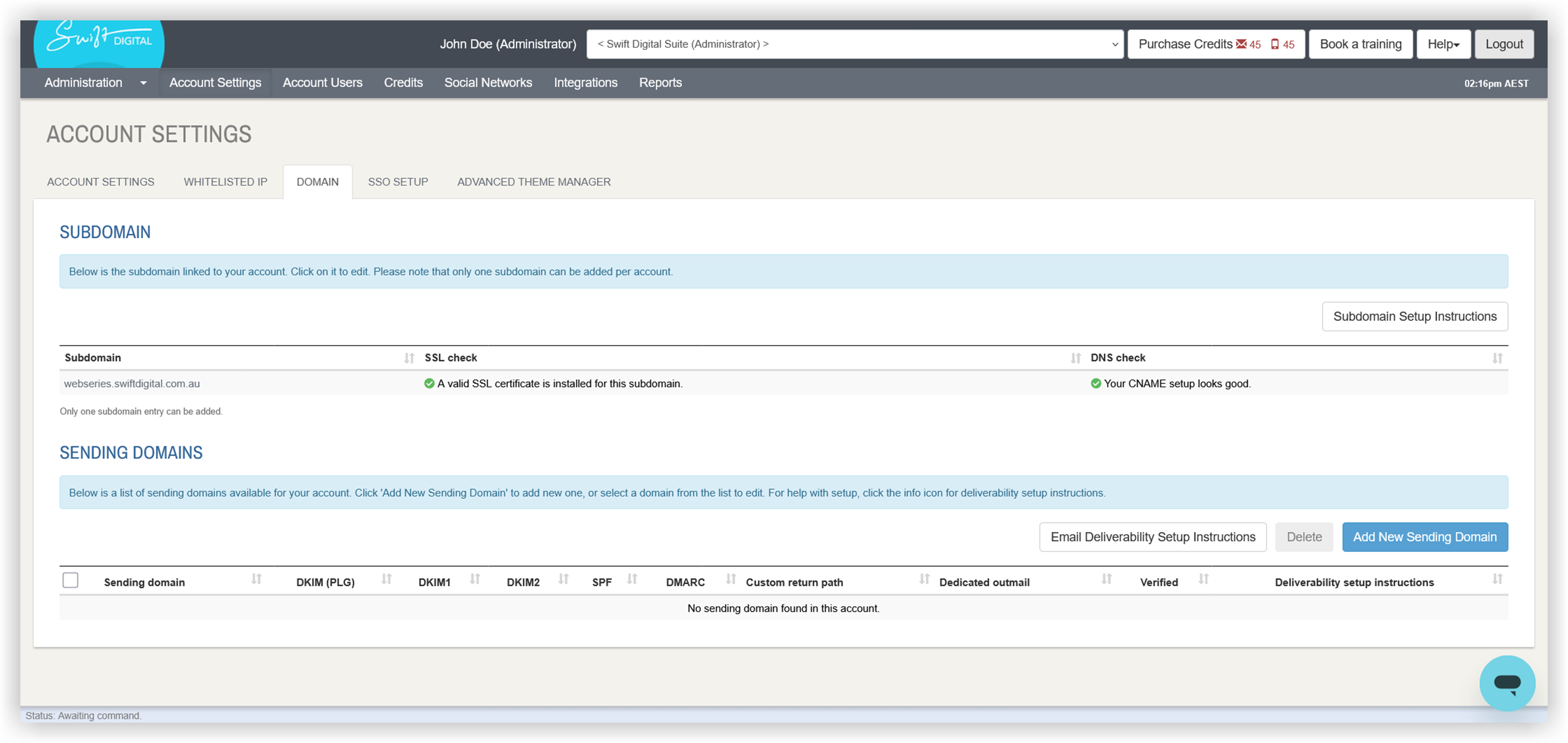

4. Select Domains tab

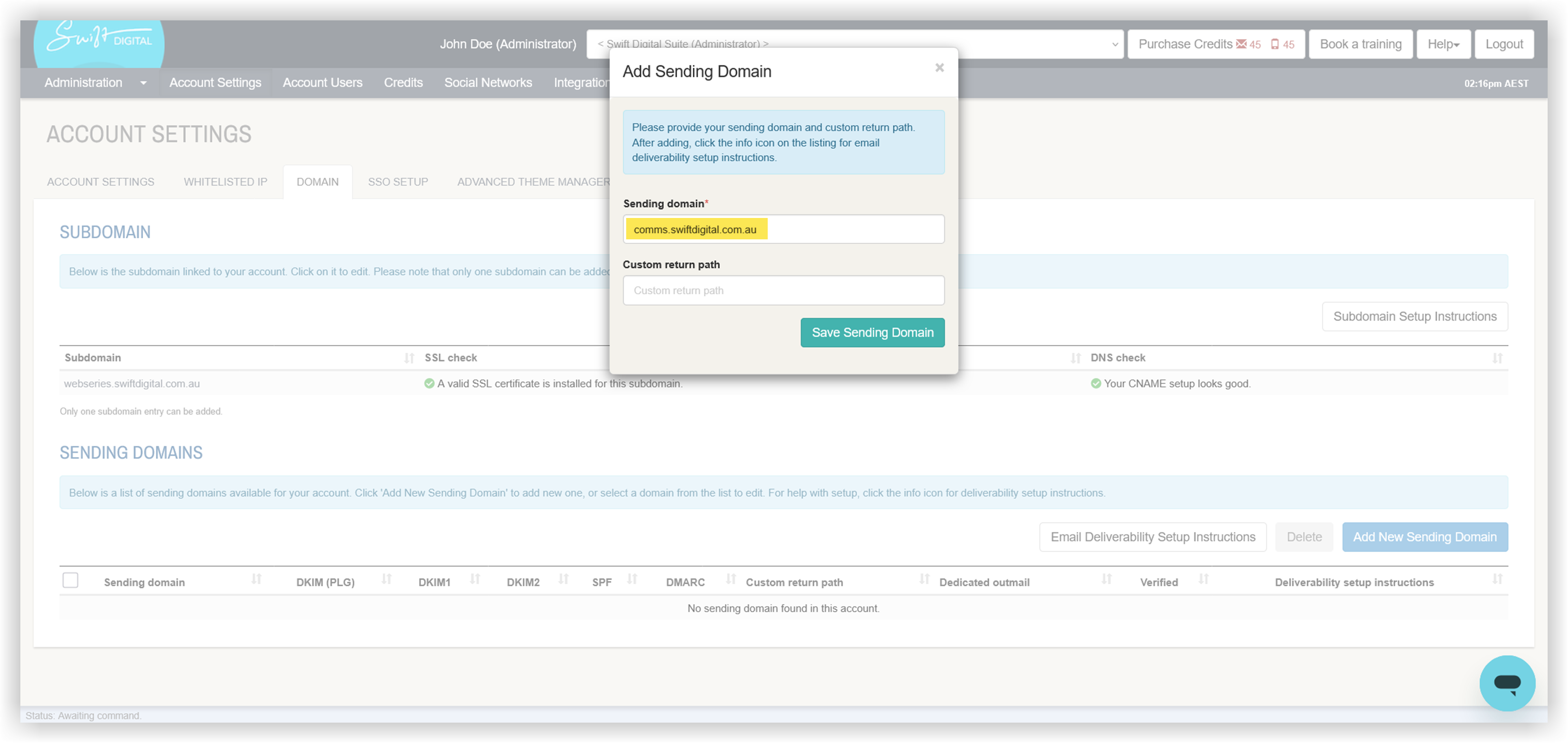

5. Click on Add New Sending Domain



6. Input Sending domain e.g comms.swiftdigital.com.au

7. Click on Save Sending Domain

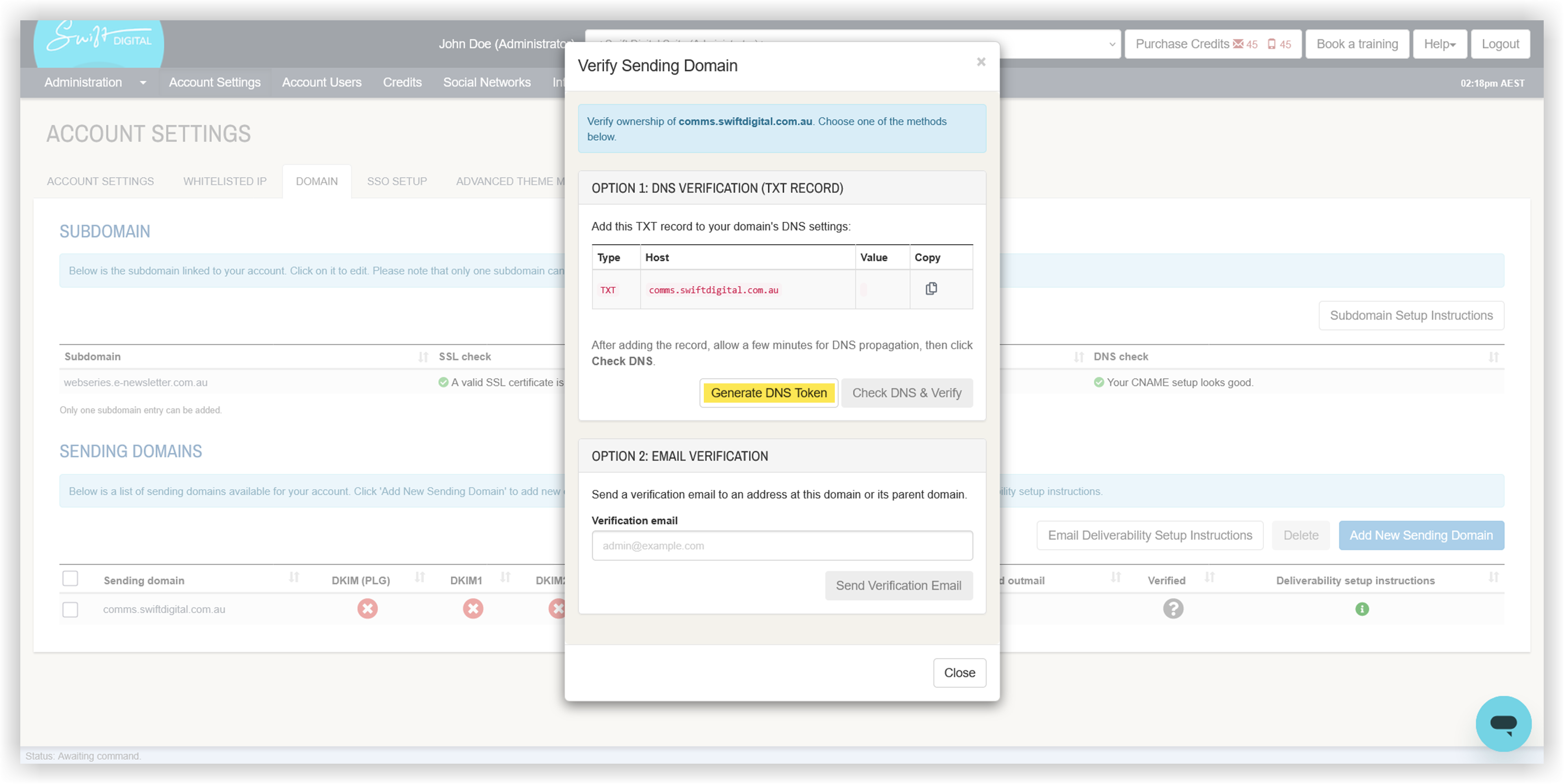

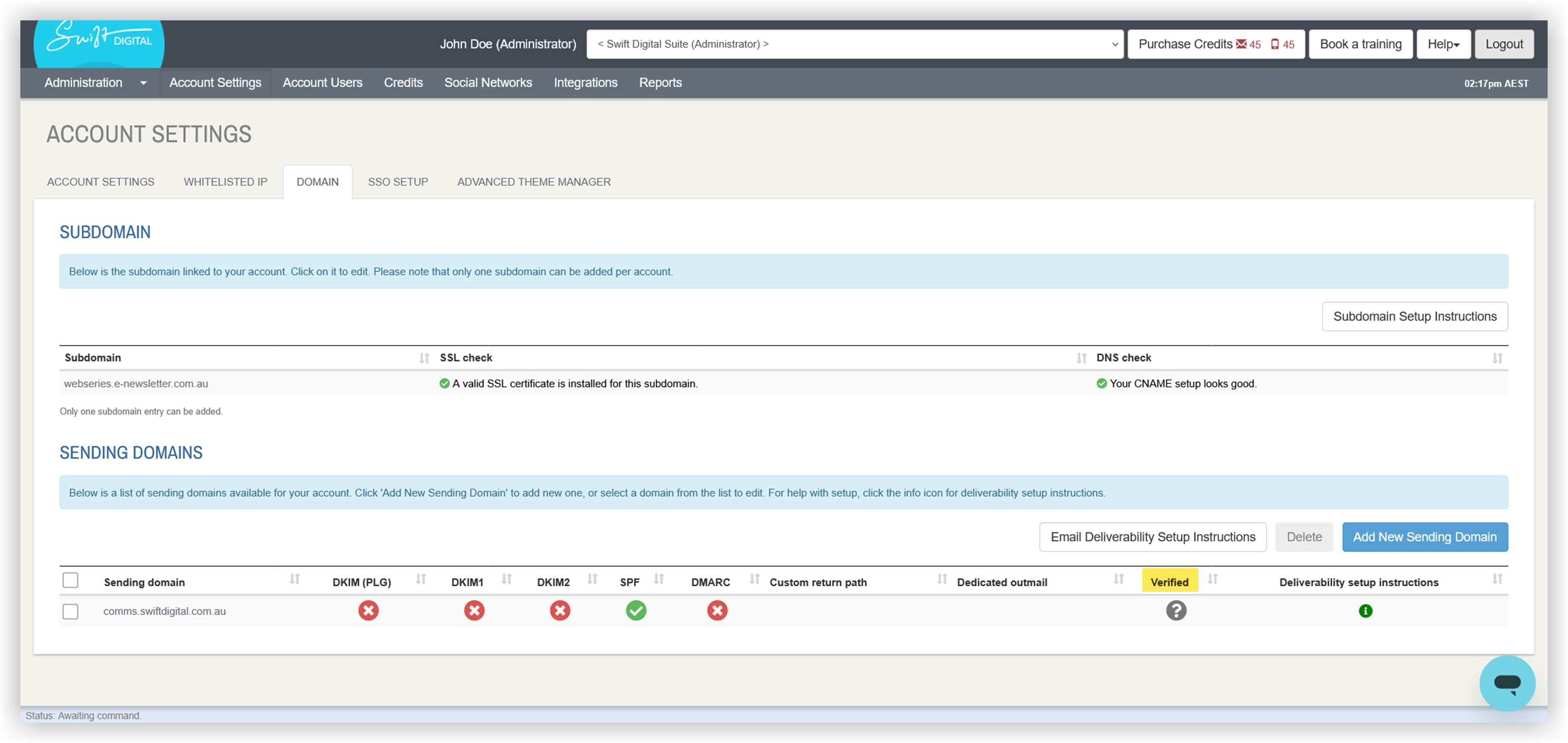

8. Click on the ? icon under the Verified column This will open the ways to verify the sending domain.



   There are two methods to verify the sending domain. Option 1: DNS Verification (TXT Record) Option 2: Email Verification

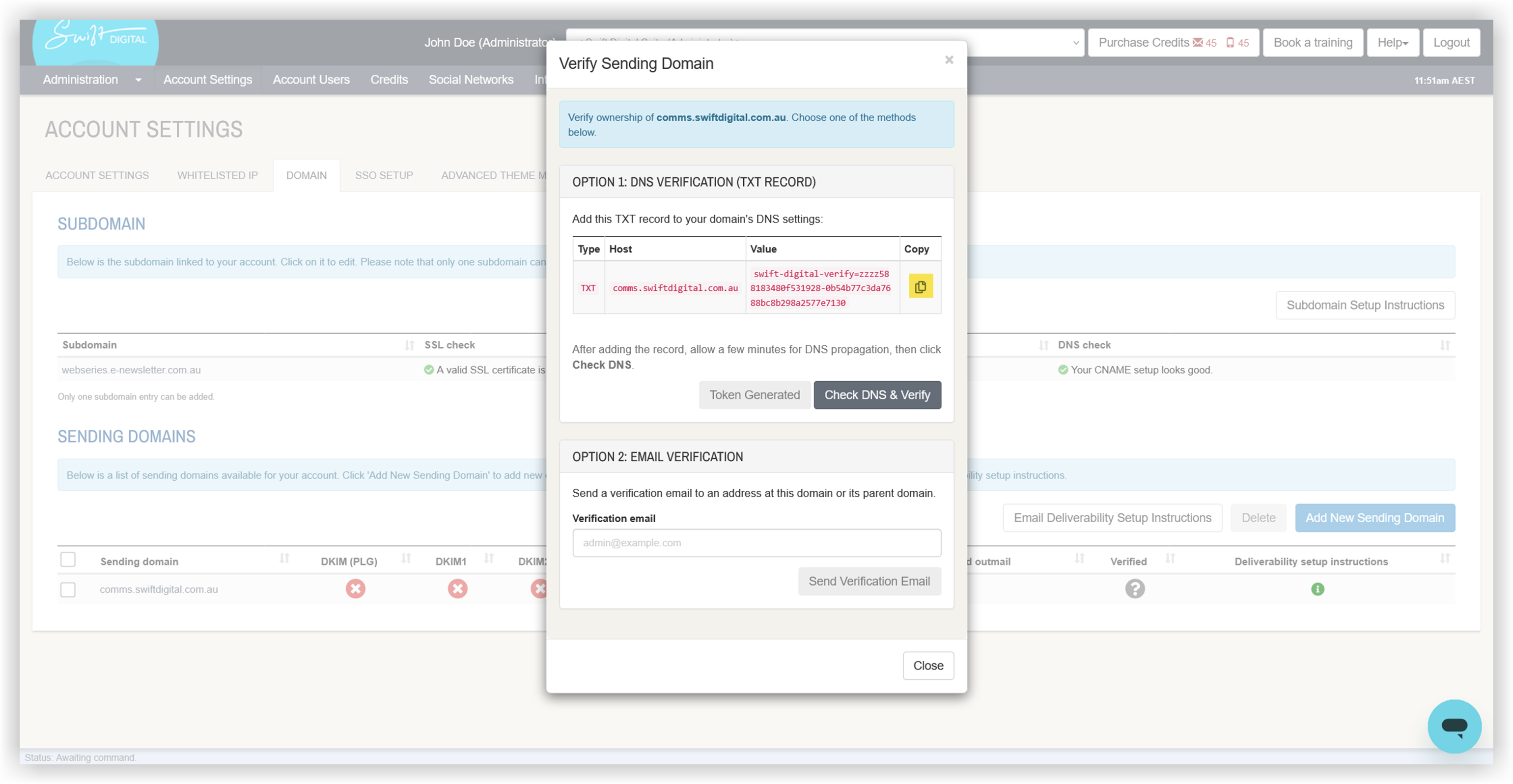

9. Click on the Generate DNS Token button under Option 1: DNS Verification (TEXT Record) This will generate a TEXT value to verify the sending domain.



10. Copy the value and add it to your DNS Settings



11. To confirm the TXT record was added correctly, visit MxToolbox https://mxtoolbox.com/SuperTool.aspx

12. Select TXT Lookup

13. Input Sending domain e.g comms.swiftdigital.com.au

14. Click on TXT Lookup

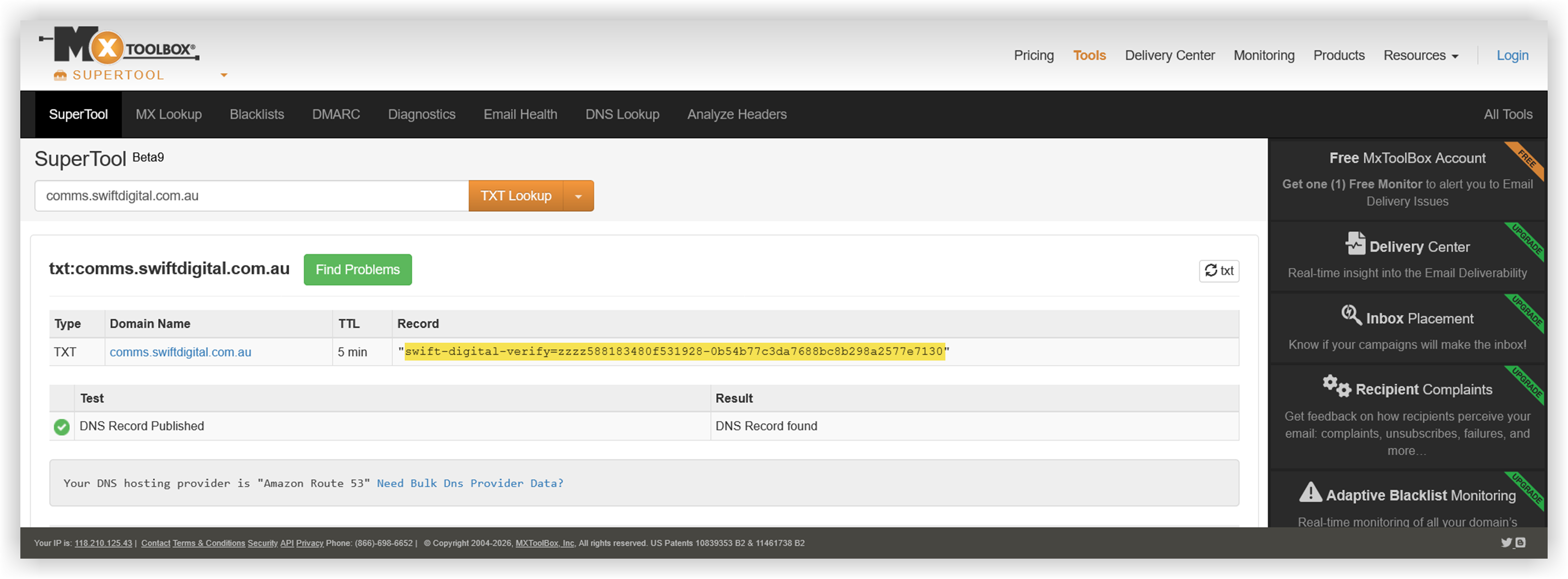

    This is the correct result that you should get after the TXT lookup record is done.

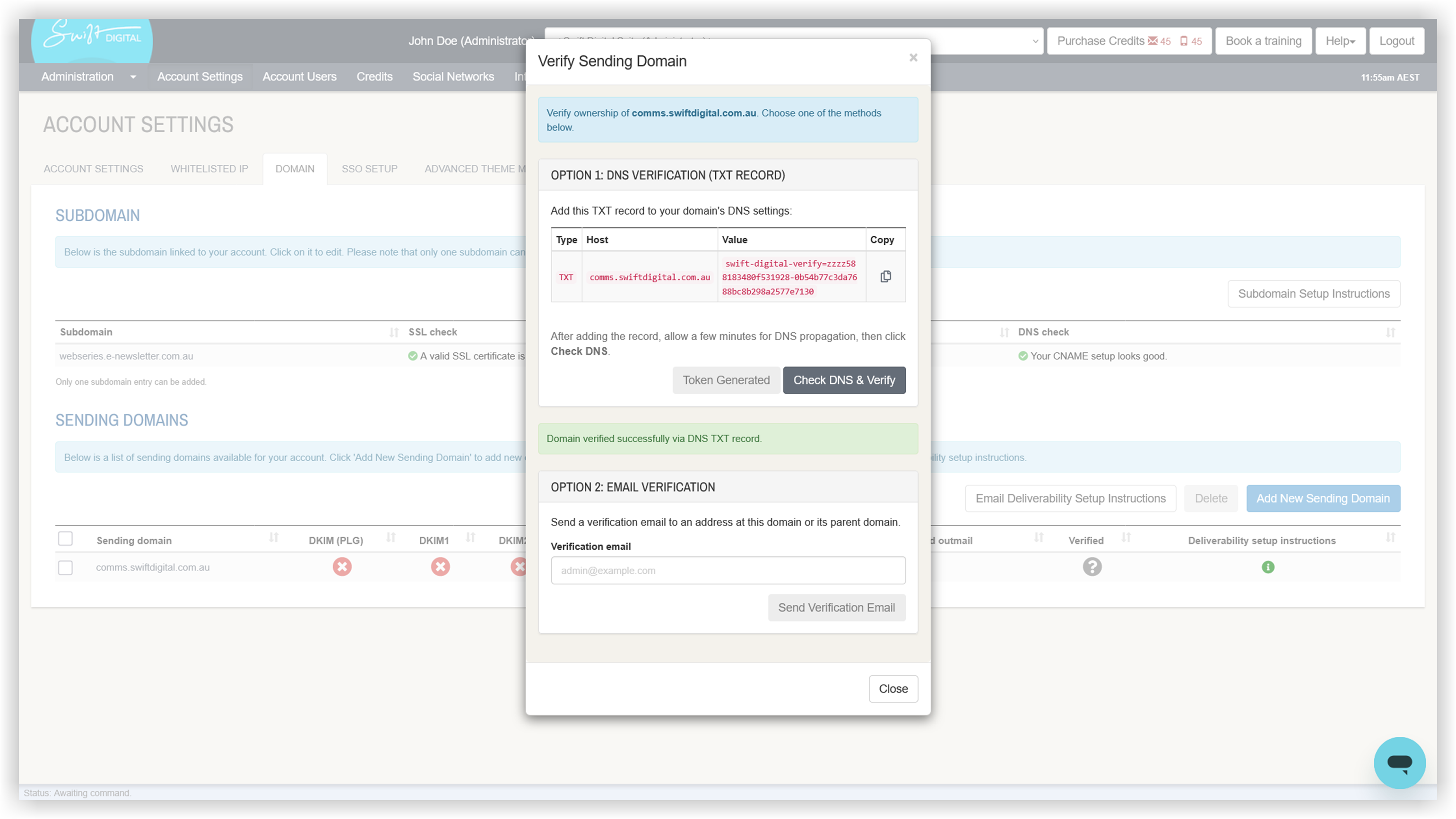

15. After confirming that the TXT record has been added to your DNS Settings, click on the Check DNS & Verify button

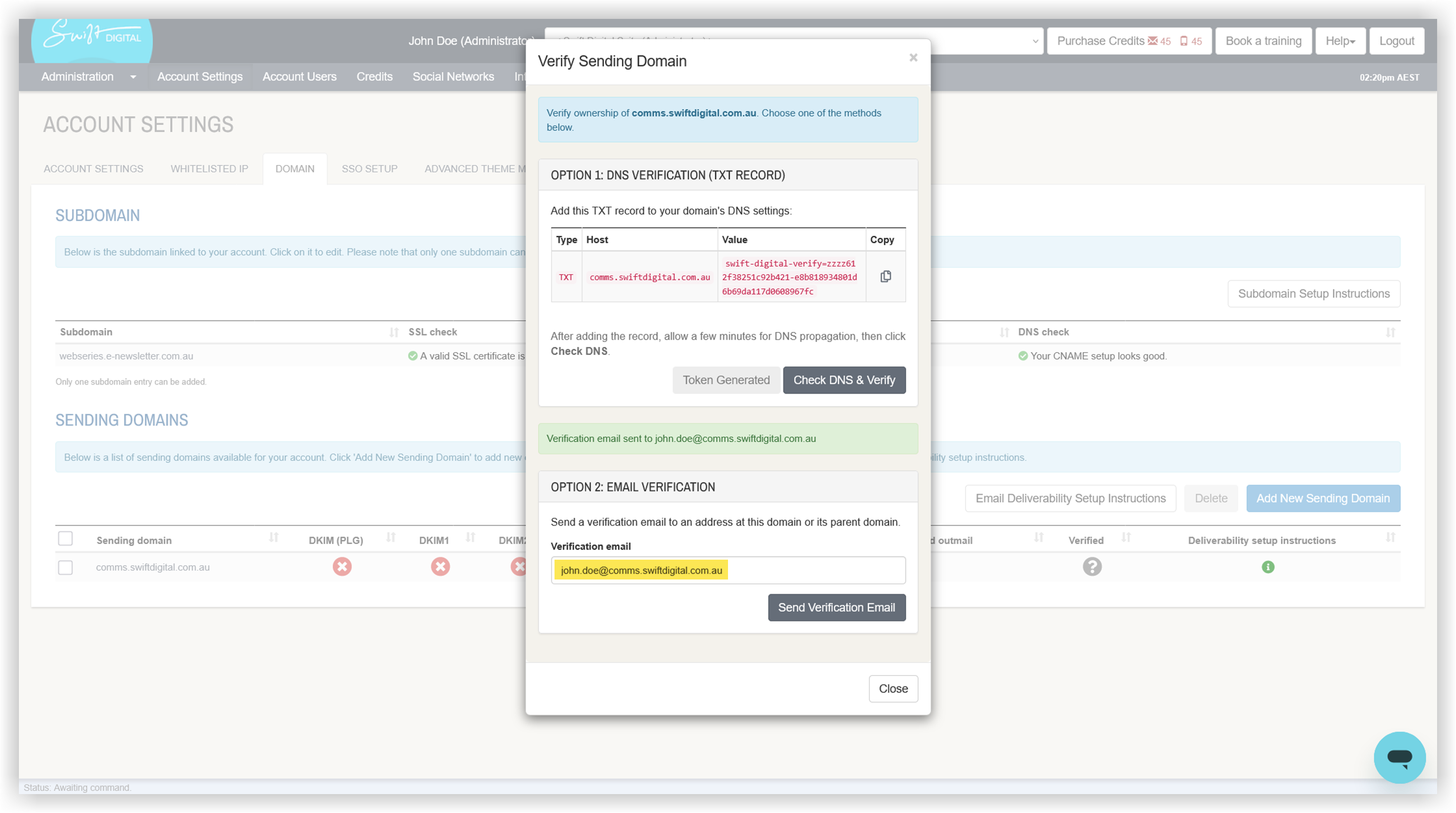

16. Input email address on Option 2: Email Verification

17. Click on the Send Verification Email button This will send a verification email to confirm the sending domain.

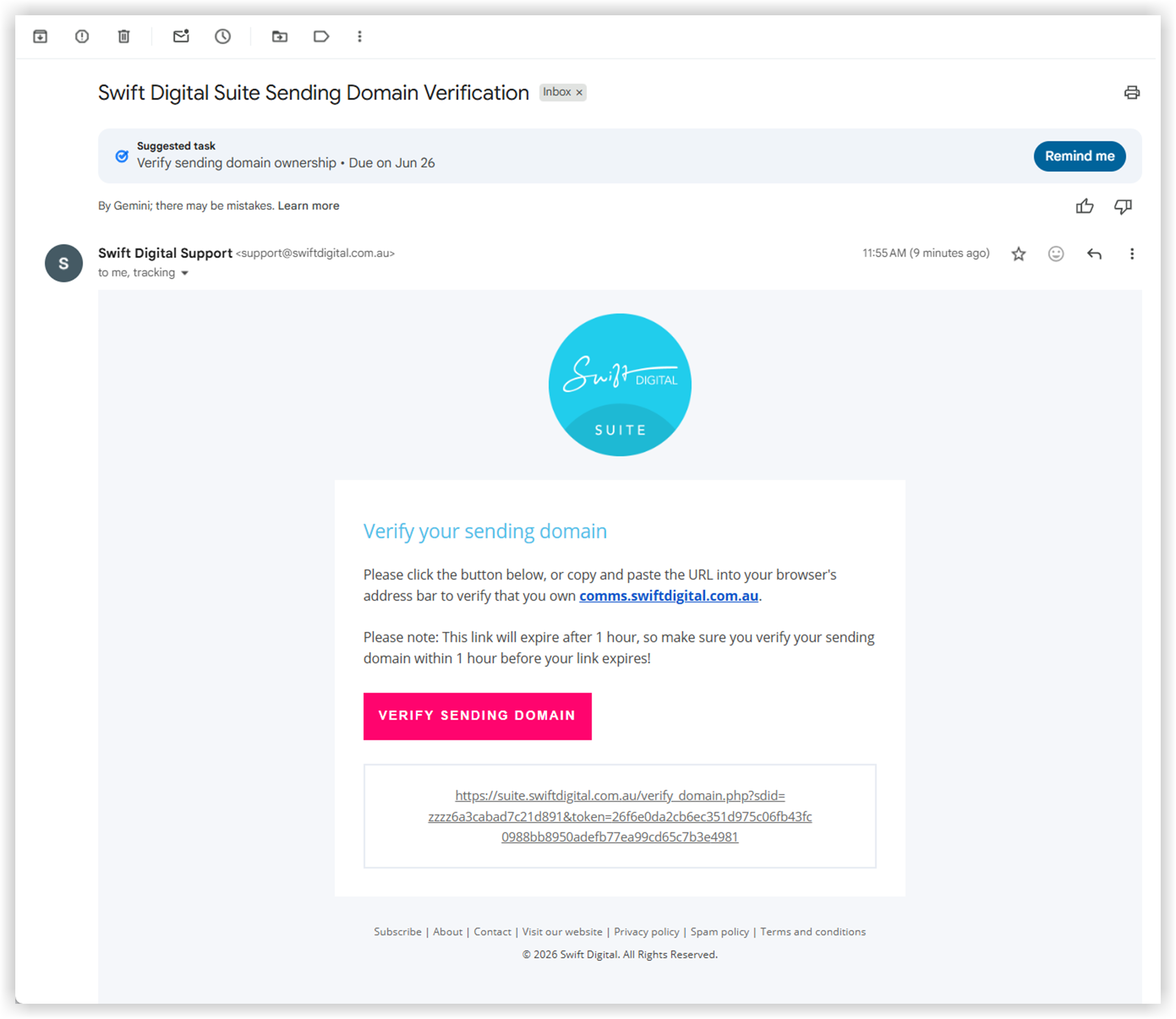

18. Open the Swift Digital Suite Sending Domain Verification email

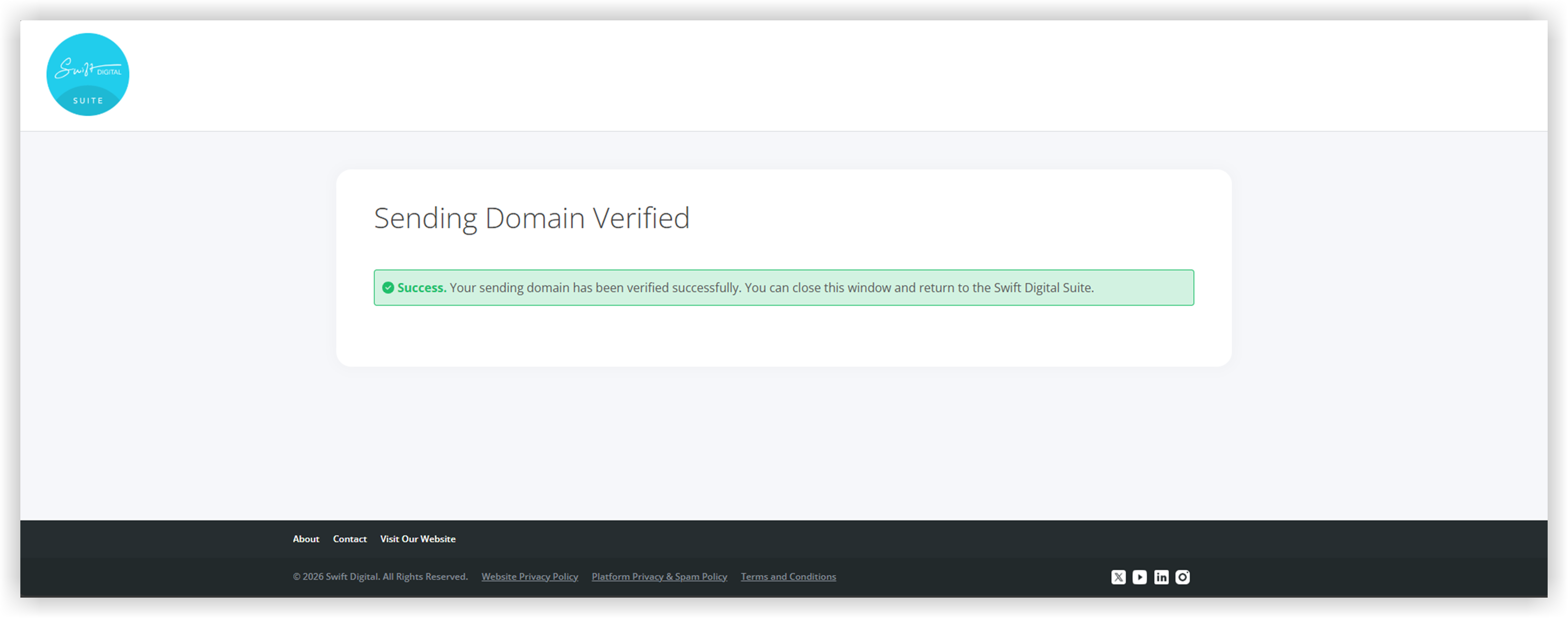

19. Click the Verify sending domain button

20. Or copy and paste the verification link from the email into your browser







21. After verifying the sending domain's ownership, configure the deliverability setup

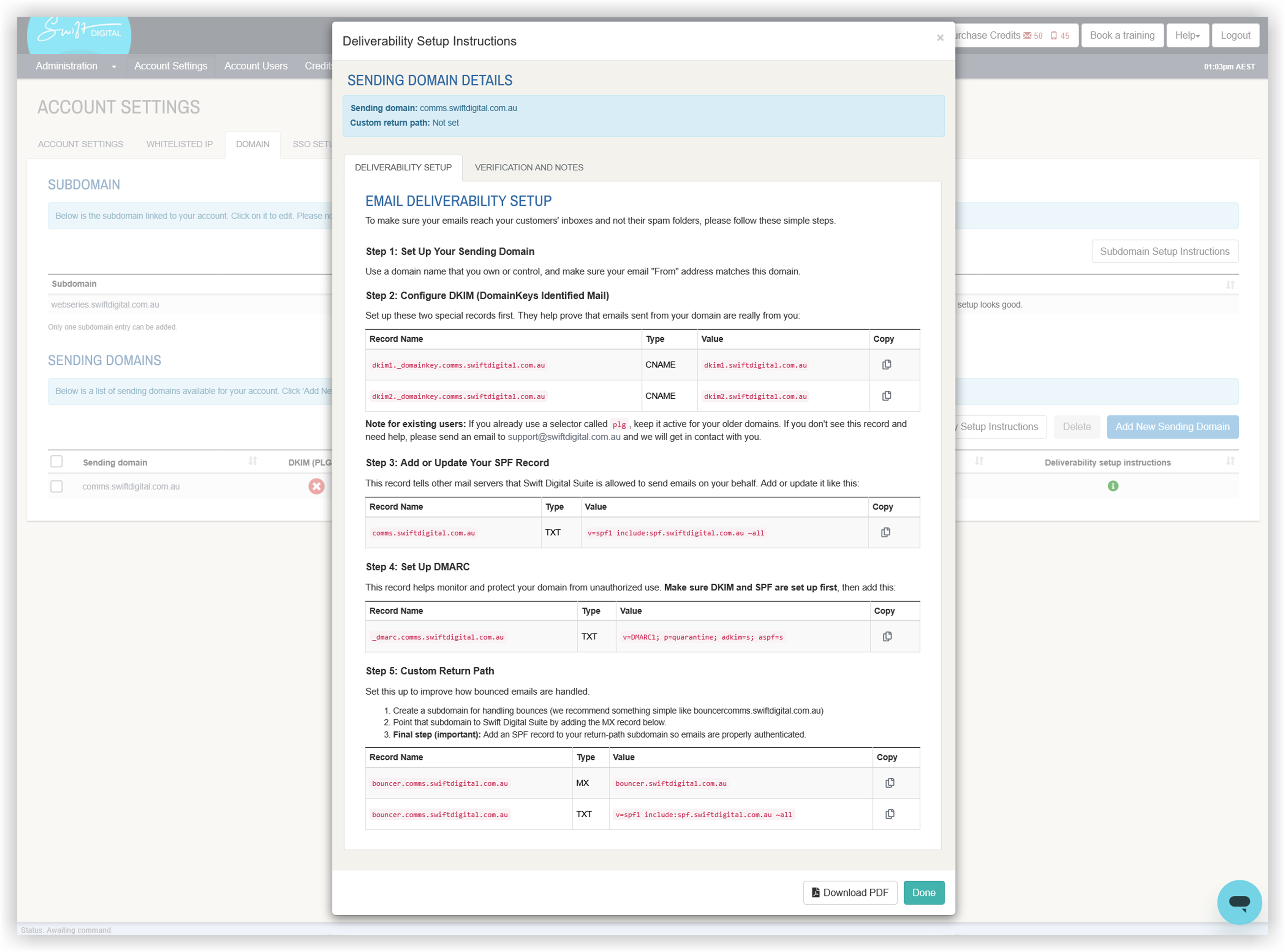

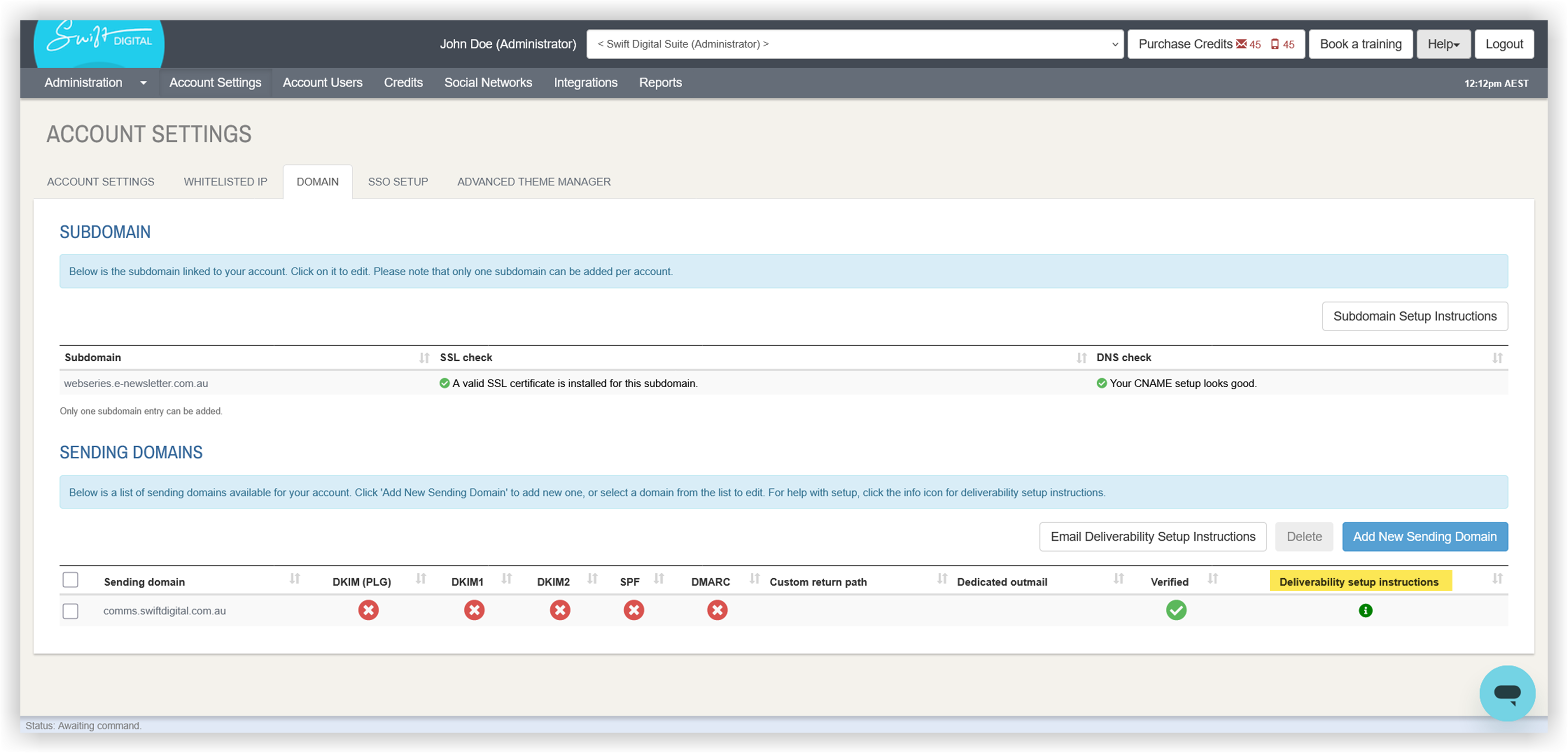

22. Click on the Info icon under the Deliverability setup instructions This will open the deliverability setup instructions modal.



23. Follow the steps in the Deliverability Setup Instructions to configure your sending domain



24. Click Download PDF to get a PDF of the steps to share with your IT team

25. Click Done after completing the steps This will refresh the sending domain list.

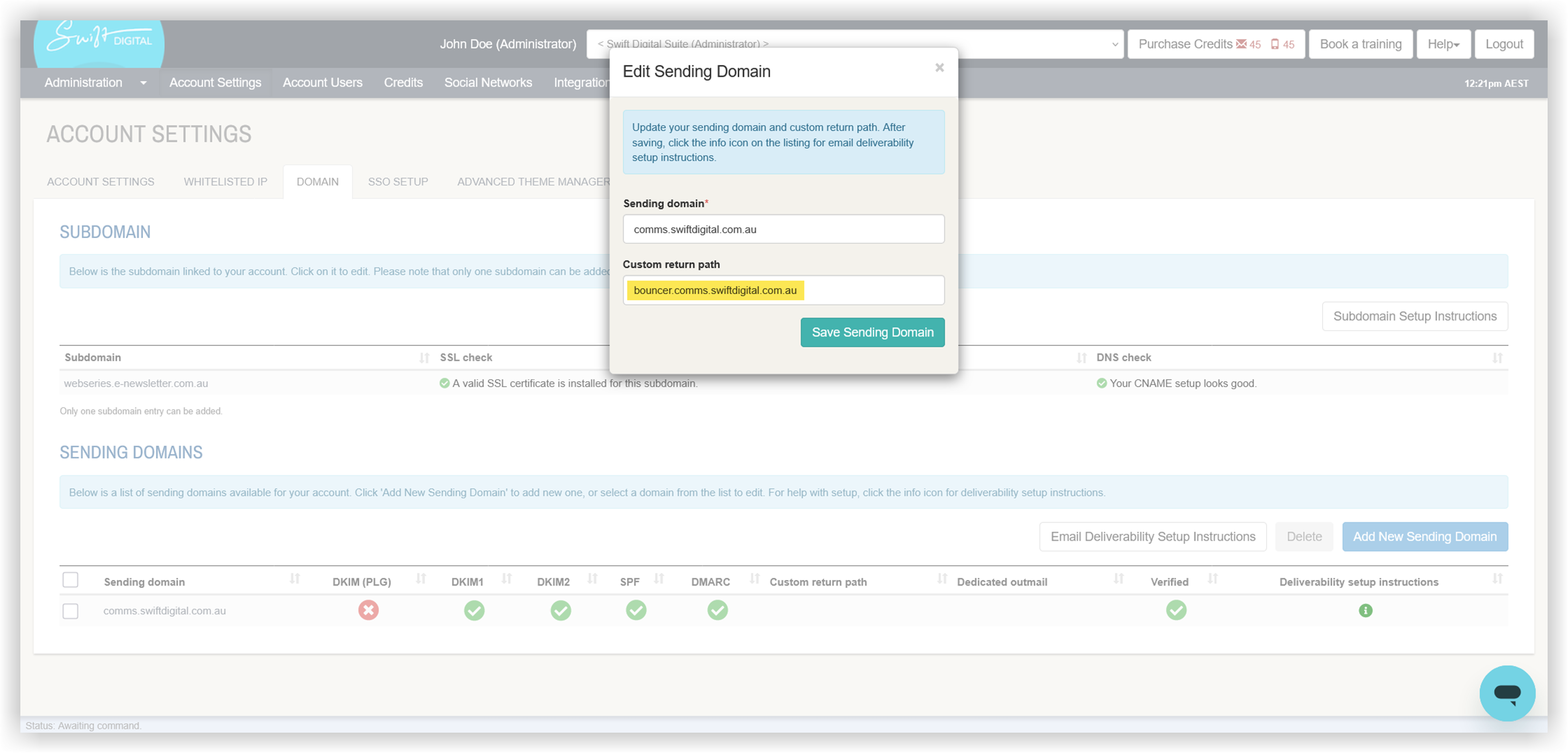

26. Click on the Sending domain in the list This will open up the edit modal.

27. Input the Custom return path you set up from Step 22 e.g bouncer.comms.swiftdigital.com.au



28. Click on Save Sending Domain

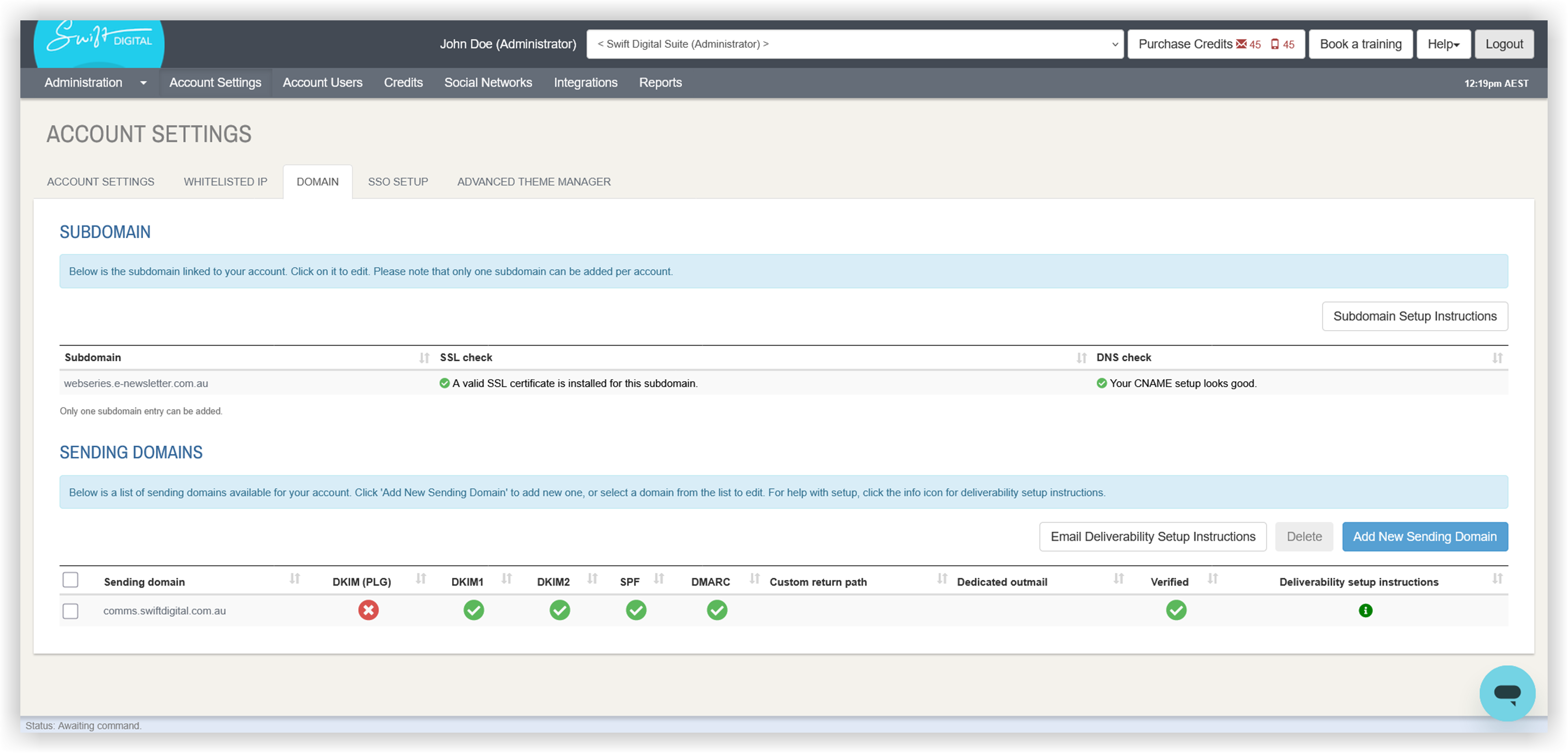

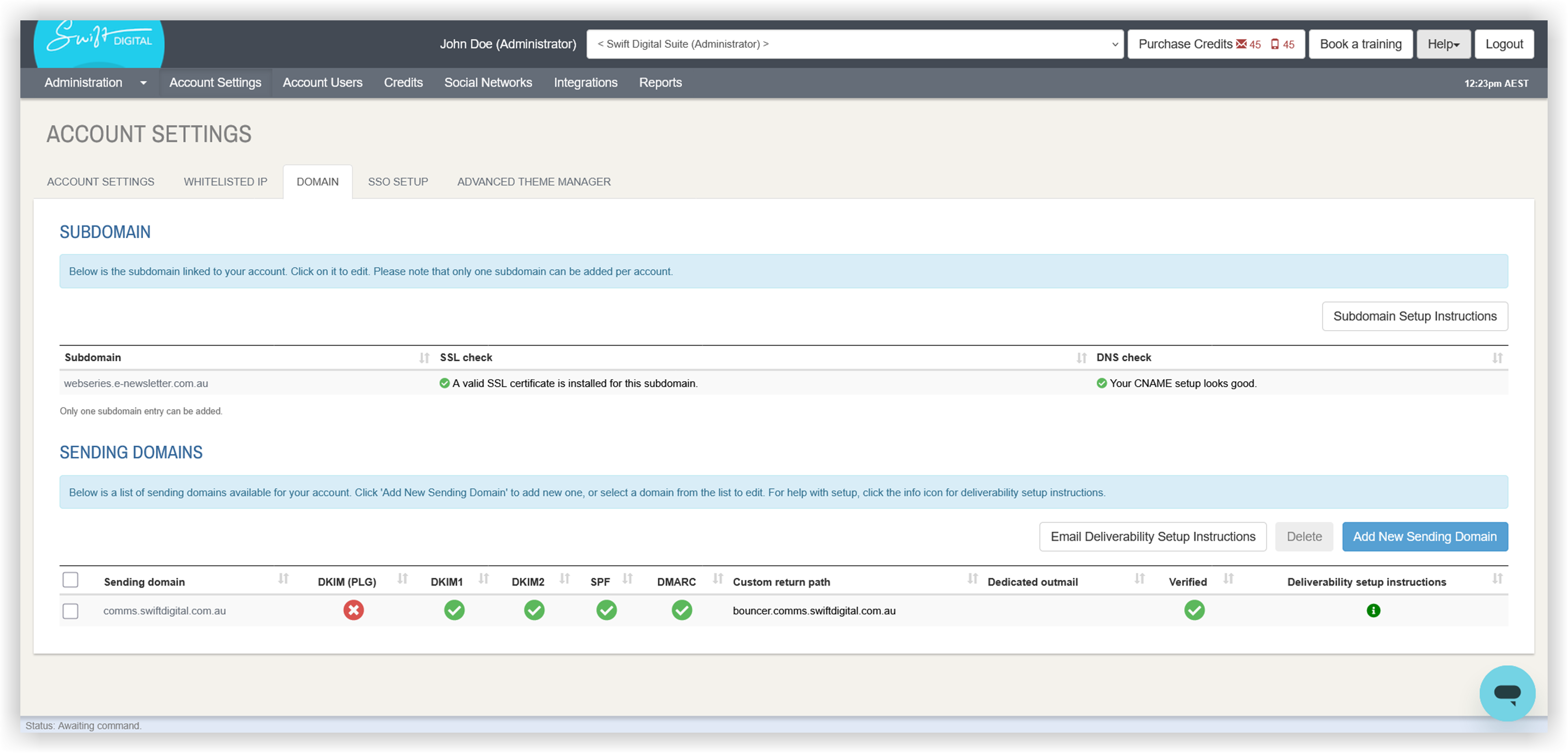

29. The custom return path added appears in the list.



You're done. Now test the email deliverability setup.

✅ Test Sending Domain Setup

1. Visit MxToolbox https://mxtoolbox.com/SuperTool.aspx

2. Select DKIM Lookup

3. Input sending domain and :dkim1 e.g comms.swiftdigital.com.au:dkim1

4. Click on DKIM Lookup

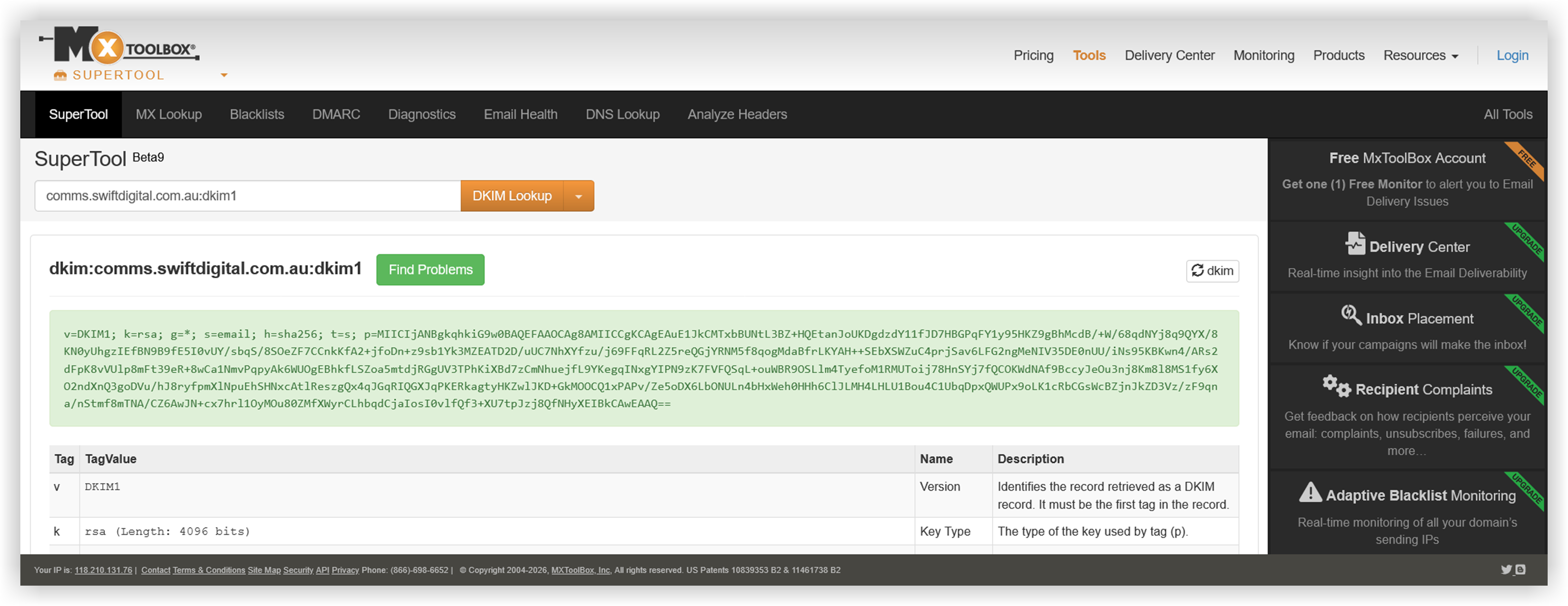

   This is the correct result that you should get after checking the DKIM1 key.

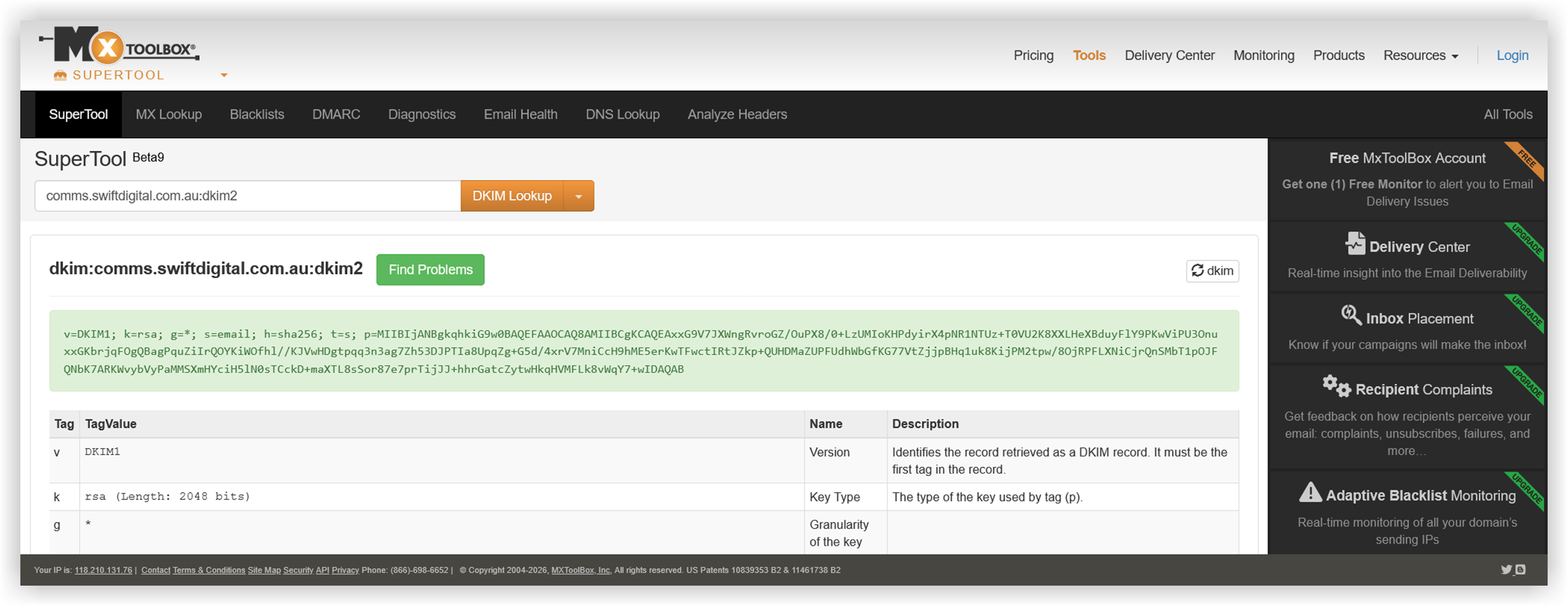

5. Input sending domain and :dkim2 e.g comms.swiftdigital.com.au:dkim2

6. Click on DKIM Lookup

   This is the correct result that you should get after checking the DKIM2 key.



7. Select SPF Record Lookup

8. Input sending domain e.g comms.swiftdigital.com.au

9. Click on SPF Record Lookup

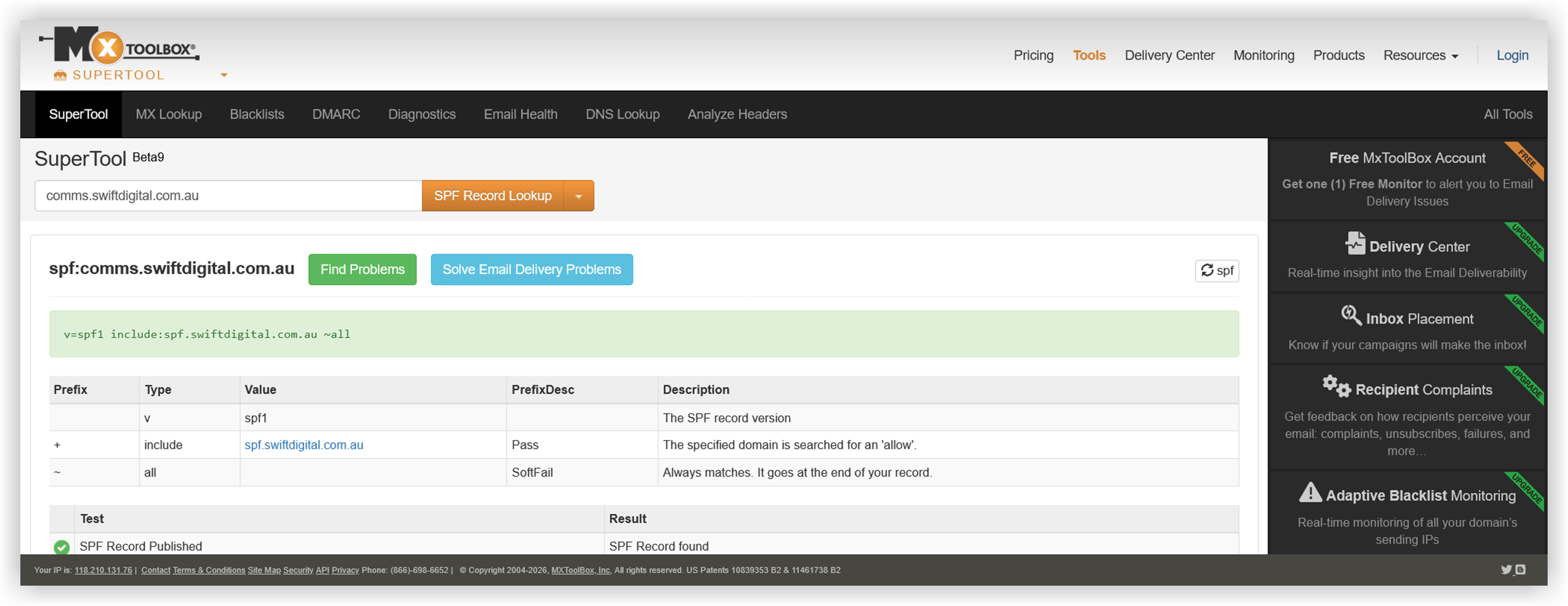

   This is the correct result that you should get after the SPF record lookup is done.



10. Select DMARC Record Lookup

11. Input sending domain e.g comms.swiftdigital.com.au

12. Click on DMARC Lookup

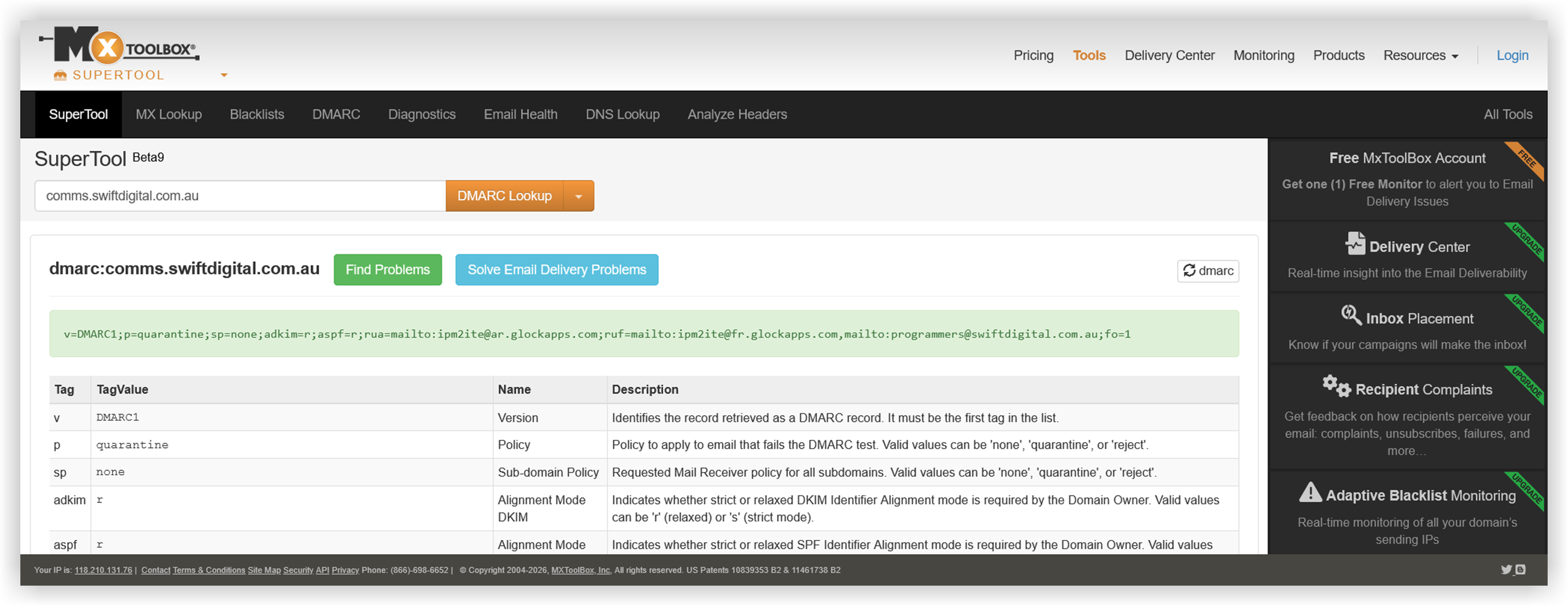

    This is the correct result that you should get after the DMARC lookup is done.

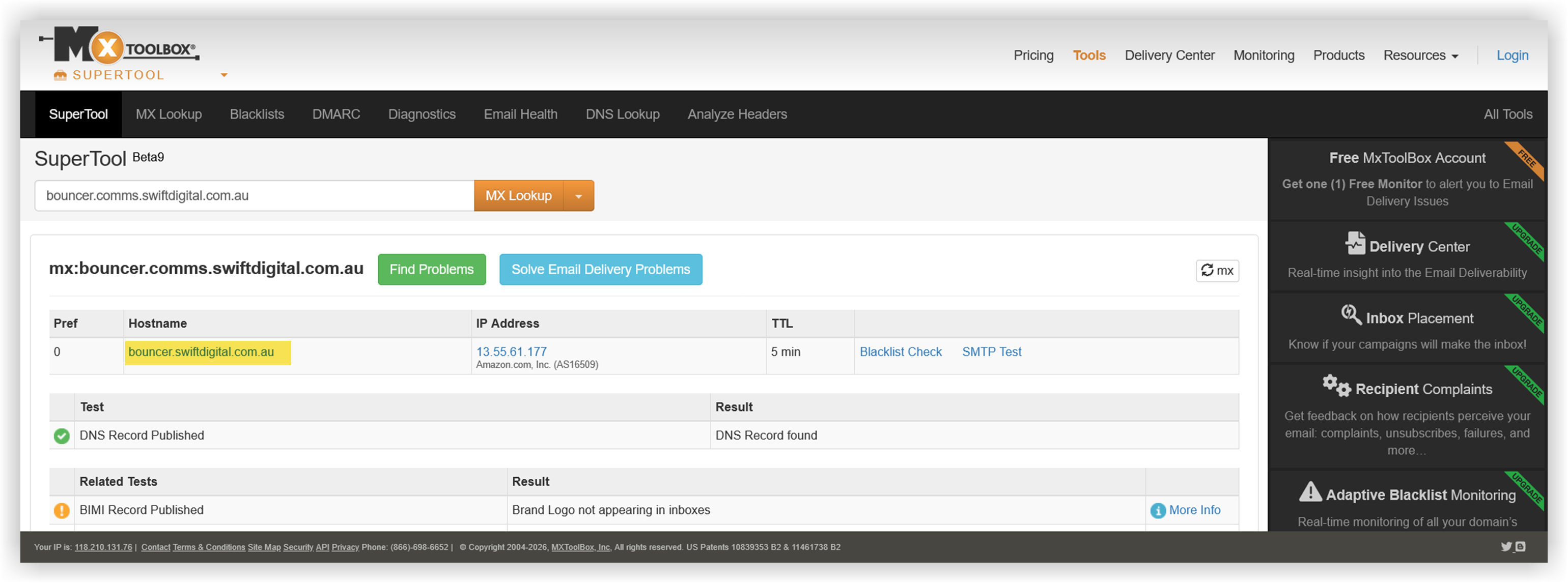

13. Select MX Lookup

14. Input custom return path e.g bouncer.comms.swiftdigital.com.au

15. Click on MX Lookup

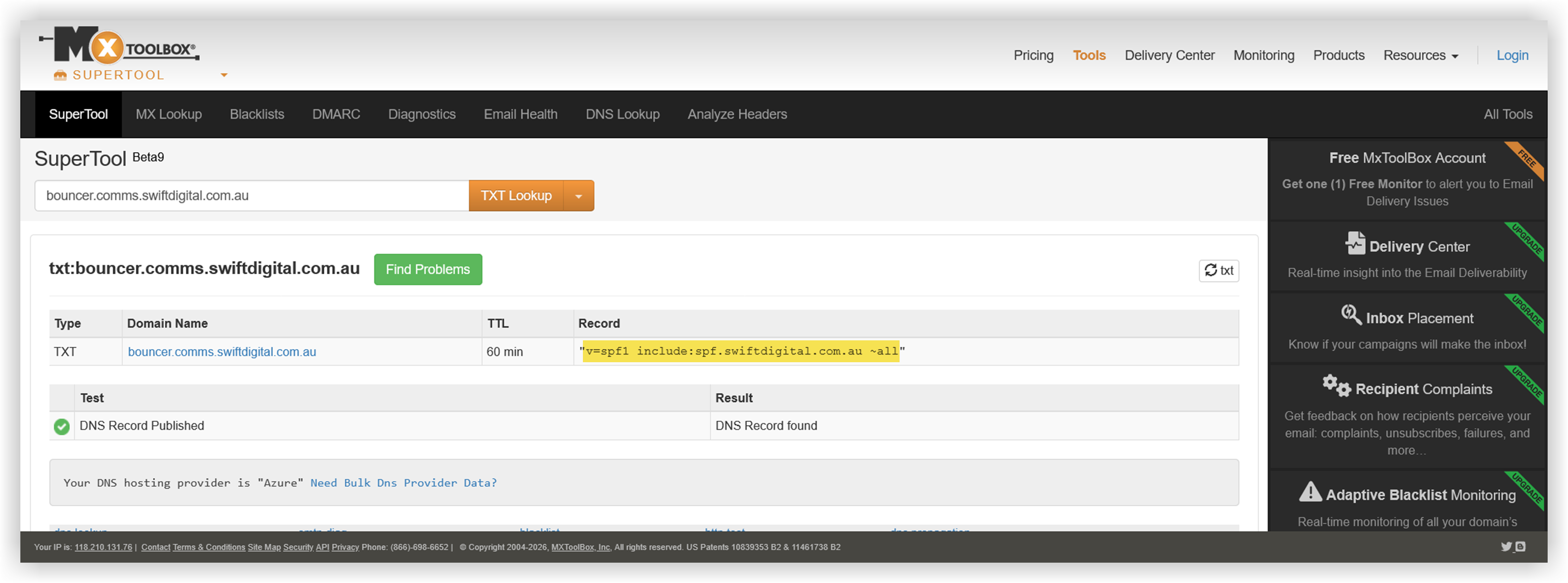

16. Select TXT Lookup

17. Input custom return path e.g bouncer.comms.swiftdigital.com.au

18. Click on TXT Lookup



19. Log in to your Swift Digital Suite account

20. Go to the Email Composer module

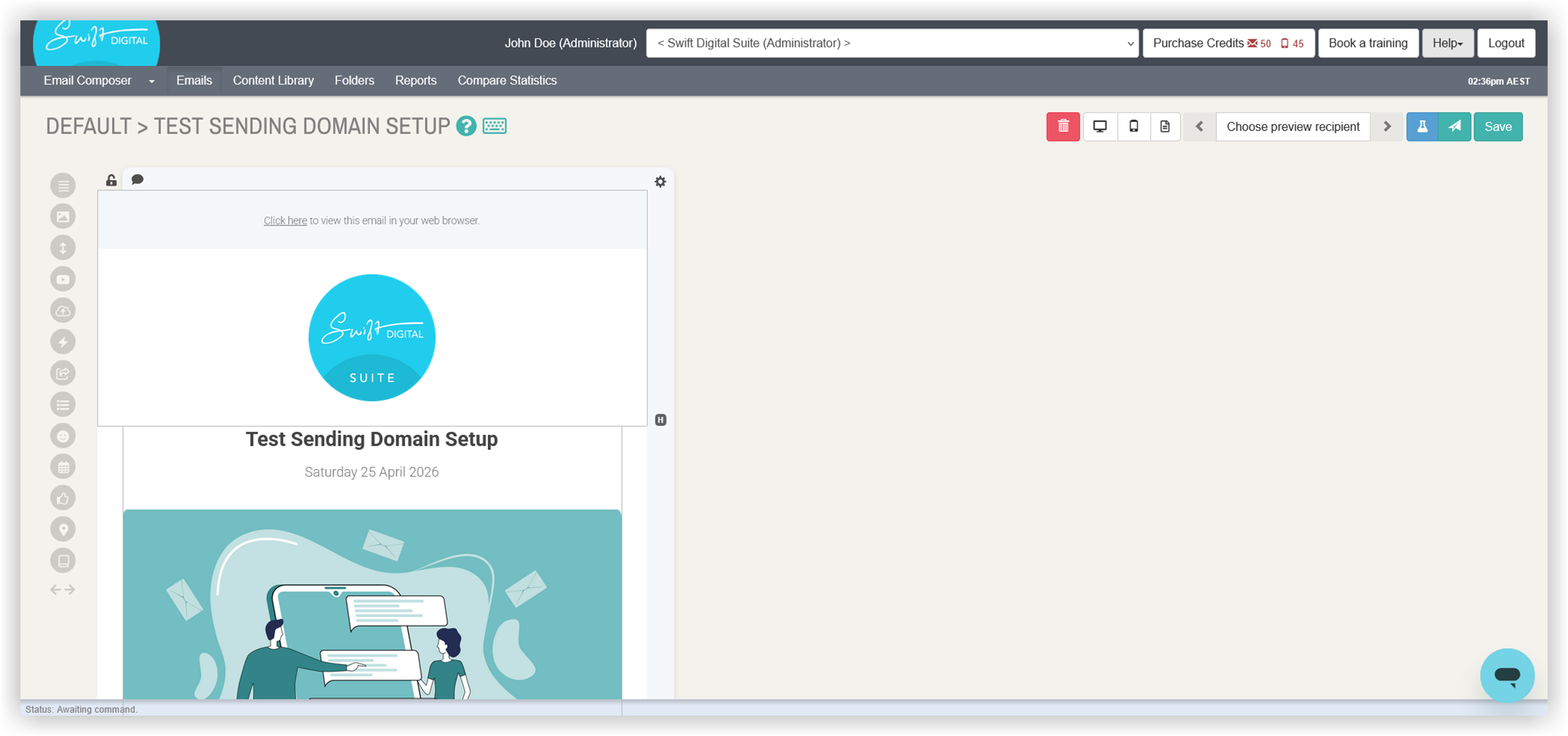

21. Create an email e.g Test Sending Domain Setup

22. Click on Publish beside the save

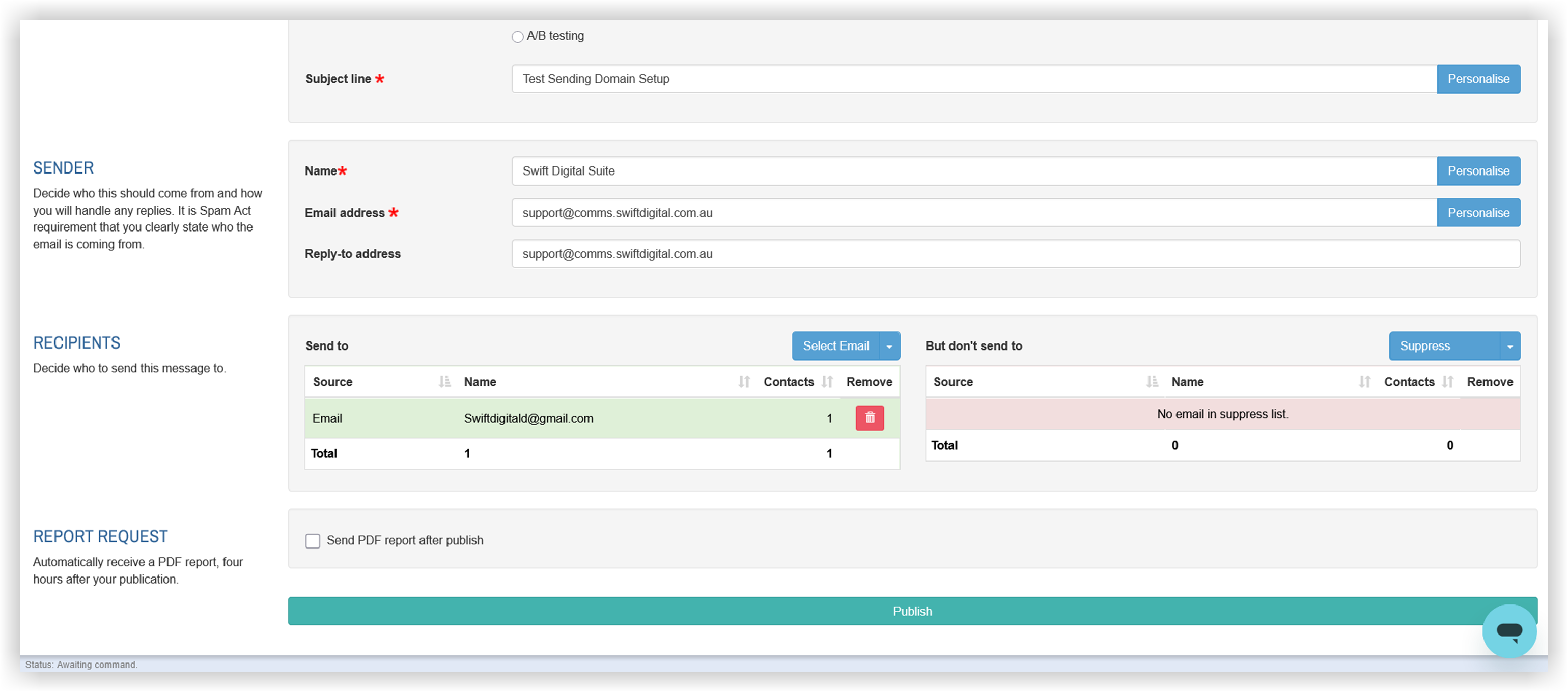

23. Set the From email address to the sending domain your setup e.g support@comms.swiftdigital.com.au

24. Select a contact to send the email e.g swiftdigitald@gmail.com



25. Click on Publish

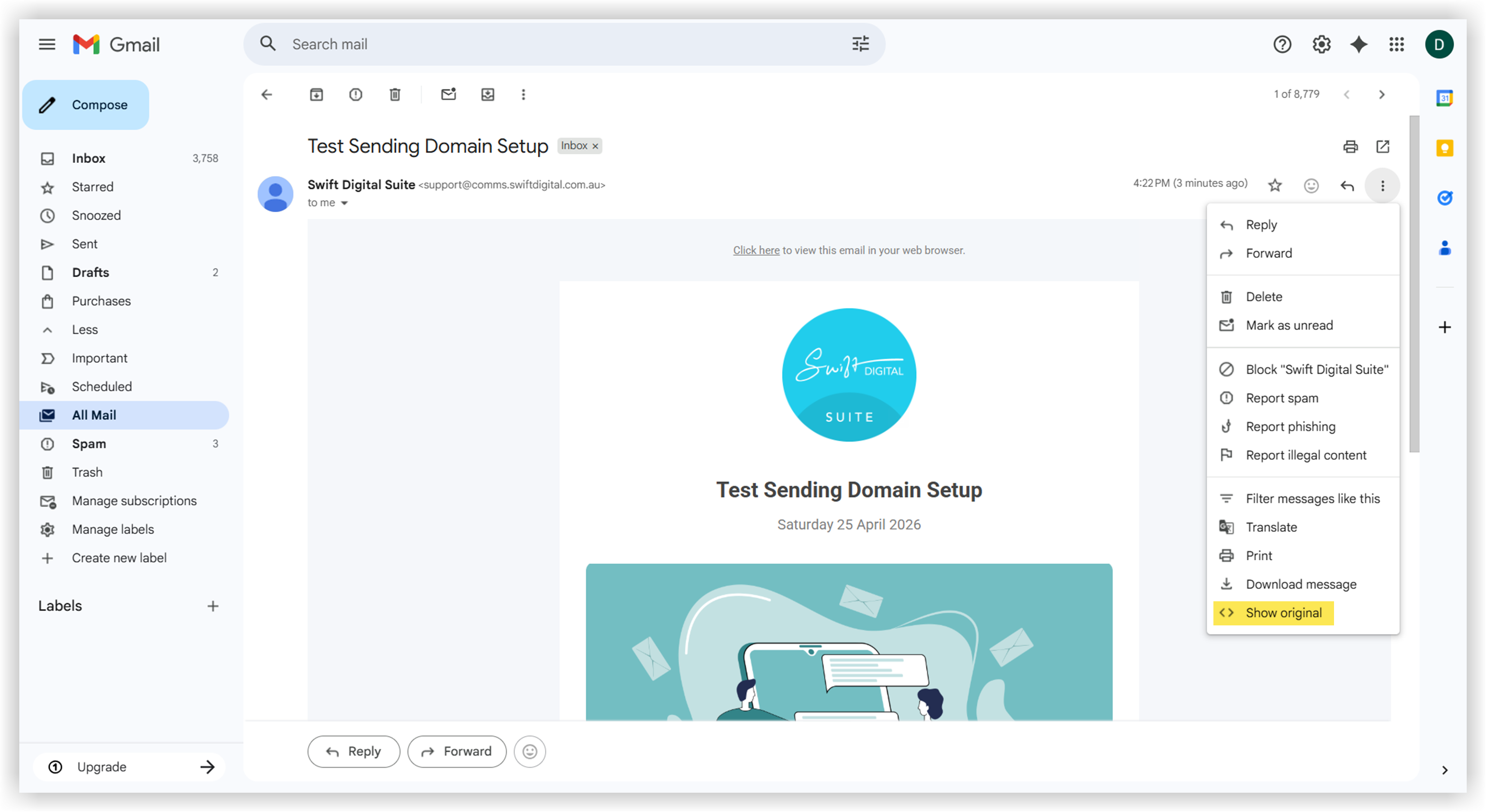

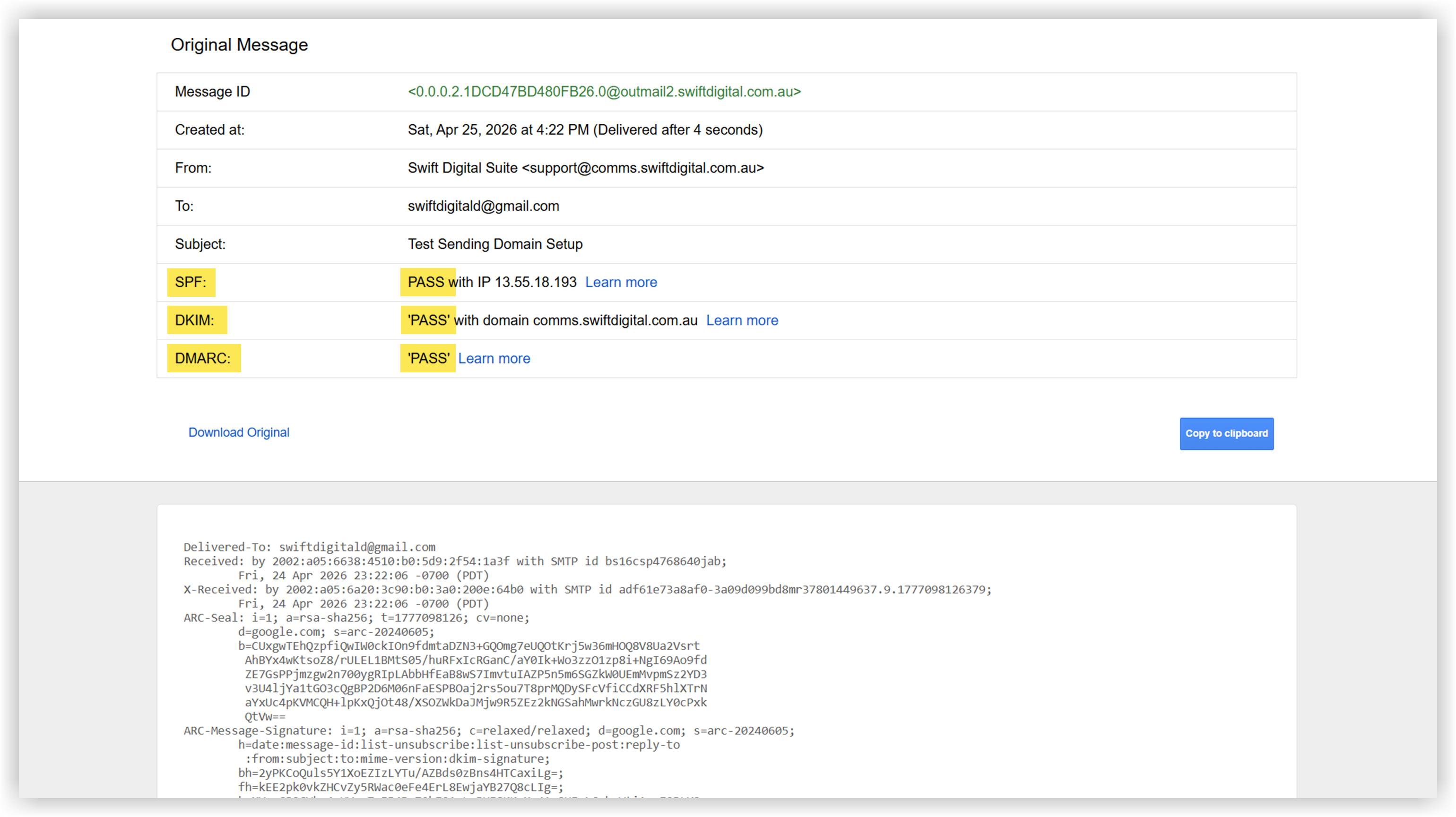

26. Open the email received, then click Show original



27. Check that you see PASS for SPF, DKIM, and DMARC



Congratulations. You can now start sending emails in your Swift Digital Suite account.
